Almondsbury, Bristol.

Two / Double storey over-garage extension -  architectural design drawings, planning permission submission, structural engineering calculations / steel reports.

The existing home had a large double garage... the third garage having been converted to a sitting room years before. This sitting room was narrow, poorly insulated and did not provide a comfortable living space for the home-owners....
they rarely used this room.

Extension design drawings were submitted for planning permission and with minor modifications in consultation with the planners, the extension designs were approved.

The floor space occupied by the former double-garage and sitting room has been divided in half to result in a spacious sitting room with large window to the front, and a double garage served by a single door. Over the sitting room, a large master bedroom has been created.


Almondsbury, Bristol.

Two / Double storey over-garage extension -  architectural design drawings, planning permission submission, structural engineering calculations / steel reports.

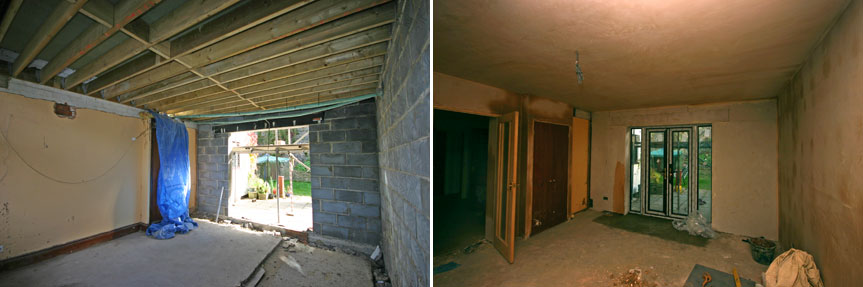

The construction of the sitting room can be seen here, prior to the opening being created in the wall to the left. Once the room is water-tight and with French doors fitted opening onto the rear garden, the 'knock-through' creates the access from the main house.


Almondsbury, Bristol.

Two / Double storey over-garage extension -  architectural design drawings, planning permission submission, structural engineering calculations / steel reports.

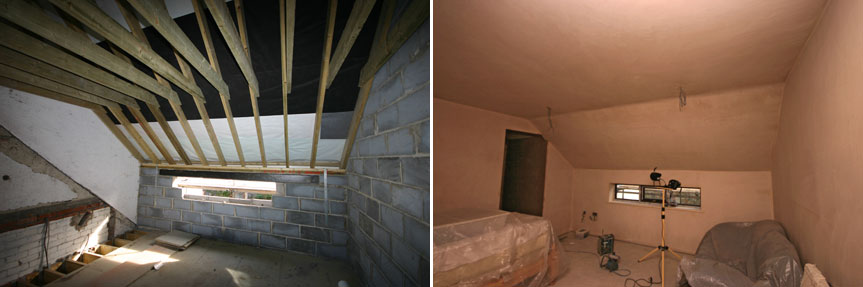

As with all extension design drawings, careful consideration is given to the position of doors and windows. The photo on the left shows the bedroom at first floor nearing completion, with roof timbers exposed prior to fixing of electrics, insulation and plasterboard. The access from the first floor landing can be seen in the right-hand photo... this demonstrates how accurate extension design drawings have to be... the door is perfectly positioned... critical, since the roof slopes down reducing the headroom.


Almondsbury, Bristol.

Two / Double storey over-garage extension -  architectural design drawings, planning permission submission, structural engineering calculations / steel reports.

The sloping roof has resulted in an attractive feature of the room, with a small window for additional light and ventilation.... the home-owners love the end result !


Ashton Gate, Bristol.

Single storey rear extension - architectural design drawings, planning permission submission, structural engineering calculations / steel reports.


Ashton Gate, Bristol.

Single storey rear extension - architectural design drawings, planning permission submission, structural engineering calculations/steel reports.


Ashton Gate, Bristol.

Single storey rear extension - architectural design drawings, planning permission submission, structural engineering calculations/steel reports.


Victoria Park, Bristol.

Loft conversion - architectural design drawings including structural engineer calculations / steel reports.

This loft conversion in a typical mid-terrace Victorian house has resulted in a large loft room, with Velux roof windows to the front and rear, with enough space for a sitting room / chill-out area, study or dressing area and well sized ensuite... perfect as a family master bedroom, a perfect bedroom  for a teenager or student room.
